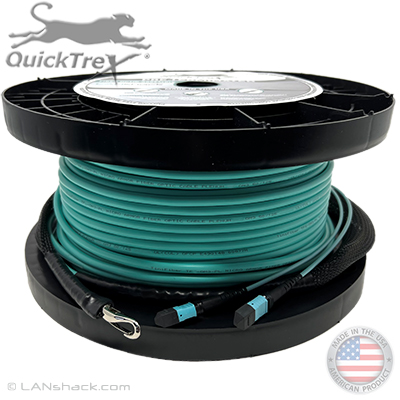

QuickTreX® MTP® premium trunk cable assemblies are made with the highest quality cable and components. We start with genuine MTP® connectors from US Conec® and precision terminate them. Our MTP® termination process delivers uniform height and positioning for maximum physical contact for consistently low insertion loss and excellent return loss characteristics across the entire 12 fiber interface. Our assemblies are made with plenum rated round mini-distribution cable for flexibility in all directions. Our assemblies are proudly made in the USA by highly trained technicians. We have strict quality control measures in place so you can be certain your assembly will work perfect once installed.

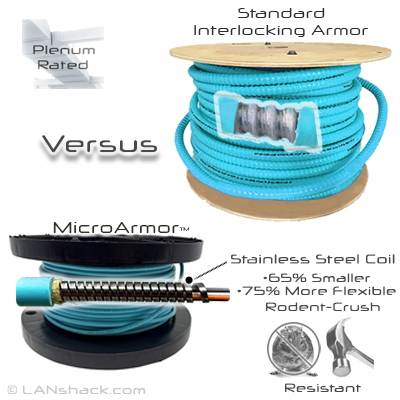

Our indoor plenum rated jacket assemblies are rated for all indoor installations, including plenum rated spaces. A cable rated for plenum installation will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency). Our Ultra-Thin Armored Pre-Terminated Fiber Optic Assemblies utilize Micro Armor Fiber™. It's a revolutionary designed fiber optic cable that provides a perfect solution for your fiber optic installs and usage. Instead of a traditional interlocking armor it utilizes a steel spiraling technology. This allows for the cable to remain extremely flexible while also being crush and rodent resistant. Micro Armor Fiber™ features the smallest outer diameter of any armor compared to conventional fiber optic cable in size and flexibility. Its light weight and great flexibility makes pulling and installs faster and easier. These assemblies are typically up to 65 percent smaller in diameter and 75 percent lighter than the usual aluminum interlocking armor cable. These assemblies provide a perfect combination of strong armor and maximum bend radius.
Typical Applications Include:
- Headend Termination to a fiber "backbone"
- Termination of fiber rack systems
- Data Center & Other High Density Applications
- Multi-floor deployment where select fibers are used at each floor
- Intra-building "backbones"
Features:
- Ultra Flexible, Rodent-Resistant, & Crush-Resistant
- Genuine US Conec MTP Connectors
- Consistent Super Low Insertion and Return Loss
- Polished & Tested in Accordance with ECI Standards & Specs
- 3mm Sequentially Labeled Furcation Tubing on Each Leg
- Staggard Connectors for Easy Installation

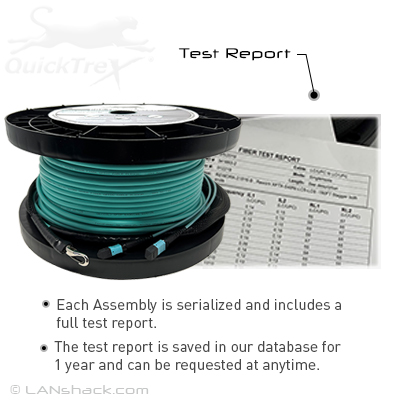

- Includes Full Test Report
- Optional Heavy Duty Swiveling Pulling Eye
- Made in the USA
- Strict Quality Control
- Fast Production Times
- ISO 9001 Certified Manufacturing
- RoHS Compliant
A 24 Fiber Trunk Cable will have two 12 Fiber MTP® Connectors on each end as illustrated below
NOTE: MTP® is a Registered Trademark of US Conec Ltd.
Specifications
Fiber Type
Multimode OM3 50/125 YOFC
Strand Count
2 x 12
Fiber Core Size
50/125 - 50µm
Wavelength
850/1300nm
Link Length
300 meters (10Gb/s@850nm)
Bandwidth
2000Mhz @ 850nm / km
Max. Attenuation
3.0dB / 1.0km
Jacket Material
Plenum UL / UFCP
Armoring Material
Encased Stainless Steel Coiled Tubular Armor
Jacket Rating
Indoor Plenum Rated (OFNP)
Outer Jacket Color
Aqua
Strength Member
Kevlar and Water Blocking Yarn
Furcation Tubing Size
3mm
Furcation Tubing Color
EIA Color Coded or Sequentially Labeled
Breakout Length
Customizable
Connector Options
Male (With Pins) & Female (Without Pins)
Pulling Eye/s
Optional
Length Options
1 - 5000 ft
Average Insertion Loss
0.3dB
Storage Temps
-40 °C to +80 °C
Operating Temps
-40 °C to +80 °C
Nominal Outer Diameter
6.5 mm
Weight
0.037 lbs. / ft
Min. Dynamic Bend Radius
13.0 cm
Min. Static Bend Radius
6.5 cm
Max. Dynamic Tensile Strength
800 N
Max. Static Tensile Strength
600 N
Max. Dynamic Crush Resistance
5000 N
Max. Static Crush Resistance
3000 N
Installation Temps
-30 °C to +80 °C
Videos
When You Place An Order
Step 01
Place Your Order
Team processes & forwards to one of our USA production departments.
Step 02
Get Notifications
Receive emails on order status & estimated ship date.
Step 03
Production & Testing
Manufactured in-house with strict quality control.
Step 04
Track Your Order
Get tracking on your shipment until delivery.
Product Reviews (190)
5
5
4
3
2
1
Vytas
First time I've ordered from LANshack, will definitely use them in the future for pre-terminated custom fiber assemblies. Shipped quick and direct to customer.
customer
LANshack really was accommodating and very helpful with my fiber needs. They went to every extent to make sure our network was up and running in no time!
ProductSections
I have used LANshack for custom pre-terminated fiber assemblies for a couple of years now. The quality of the product is top notch. Setting up a new building and ordered this 1200' to connect 2 buildings together. Great termination quality. Zero issues installing and connecting. Connection lit from the start. Thank you very much.
Allen
Whenever we need to install a fiber link from one building to another, we order pre-terminated assemblies from LANshack ! Always done right, very reasonable turn around times. Shipping deals are always a plus.
customer
Great customer service. Products in stock.
Questions & Answers
What is an MTP or MPO trunk cable assembly?
An MTP/MPO trunk assembly is a fiber optic cable that has been terminated with MTP/MPO connecctors. It is designed for high-density, high-speed data transmission in data centers, enterprise networks, and telecom applications.
What is the difference between MPO and MTP?
MPO (Multi-fiber Push-on) is a generic term for multi-fiber connectors, while MTP (Multi-fiber Termination Push-on) is a specific, higher-performance version of MPO designed by US Conec. MTP connectors are designed to offer better mechanical and optical performance than standard MPO connectors.
What is a MTP or MPO connector?
It is a is a Multi-fiber Termination Push-on connector that consists of either 12 or 24 fibers used to connect multiple optical fibers in a compact form factor, ensuring efficient data transmission.
What lengths can I have my MTP trunk made to?
We offer lengths from 1 ft through 5000 ft.
What is a pulling eye?
A pulling eye is an additional attachment that we offer optionally on our MTP trunk assemblies. They are designed to facilitate installation. It provides a sturdy attachment point for your pull string or rope, allowing you to pull the cable through conduits or tight spaces without damaging the connectors or fiber strands. The benefit of using a pulling eye is that it reduces the risk of damage during installation, especially in complex pathways or confined spaces. Our pulling eyes include a swivel buckle that twists during the pull preventing twisting of the cable which can cause damage.
