Our QuickTreX® opticalCON DUO® fiber optic assemblies harness the power of the Neutrik® brand tactical connector, with tactical grade fiber to provide a superior rugged product. QuickTreX® Tactical & Rugged Pre-Terminated Fiber Optic Assemblies are designed to withstand the harshest of environments. This assembly is military approved, and is ideal for audio and broadcast networks.

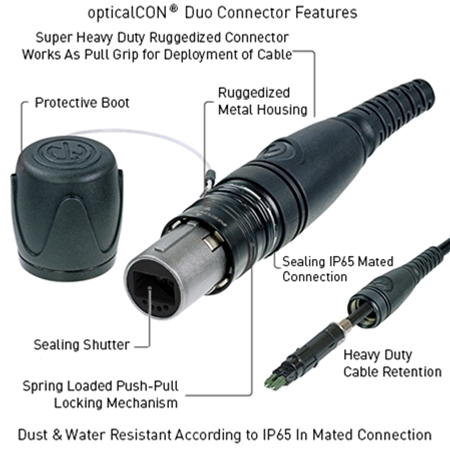

The opticalCON DUO cable connector houses a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. A spring-loaded push-pull locking mechanism provides superior protection for the connectors, and the fiber provides excellent cable retention utilizing aramid yarn. An automatically operated sealing cover protects the connectors from all contaminants like dirt and dust.
Our Tactical and Rugged Assemblies can optionally be installed on a heavy duty Schill deployment reel, designed for quick deployment and retrieval. These Schill reels include a door which houses the connectors for safe and secure storage while not in use. Our Tactical & Rugged Fiber Assemblies include an optional cover sleeve and wire mesh handle on the pull end of the assembly which allows for fast deployment while also protecting the connectors from damage. This assembly is made in the USA by skilled technicians under controlled conditions, and comes to you fully tested and ready for immediate use. The test results are placed on the inside of the door.
Features:
- Ruggedized connectors
- Contaminant protected fiber optic connection system
- Waterproof - IP65 safety standard in mated condition
- Accommodates standard optical LC-Duplex connectors
- Cable connector features rugged all metal housing and heavy-duty cable retention
- Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
- Reliable Push-Pull locking mechanism
- Easy to clean, no special tools required
- Tested to meet MIL-PRF-85045
- High impact and crush resistant - it can withstand a heavy vehicle and high foot traffic
Schill Reels
This tactical fiber is commonly used for deployment situations where the fiber needs to be deployed fast and reeled back up when done. Therefore we recommend using one of the Schill Reel options for your tactical assembly. We have three different options depending on the length of your assembly. Please choose the correct one per the length of your fiber because each reel is sized to hold a certain length. We also have a no reel option for shorter lengths, and a basic shipping spool for situations where a deployment reel isn't needed.
Specifications
Fiber Type
Multimode OM3 50/125
Strand Count
2
Fiber Core Size
50/125 - 50µm
Wavelength
850/1310nm
Bandwidth
2000Mhz @ 850nm / km | 500MHz @ 1310nm / km
Jacket Material
Polyurethane
Jacket Rating
Tactical
Outer Jacket Color
Black
Strength Member
Aramid Yarn
Length Options
10 - 5285 ft
Testing
IL Max 0.3dB, Min -0.1dB
Storage Temps
-70°C to +85°C
Operating Temps
-40°C to +85°C
Cable Diameter
5 mm
Weight
0.016 lbs. / ft
Min. Bend Radius / Installation
5 cm (1.97 in)
Min. Bend Radius / Operation
2.5 cm (0.98 in)
Max. Tensile Load / Installation
1800 N (short-term)
Max. Tensile Load / Operation
600 N (short-term)
Application
Indoor/Outdoor
Resources
Tactical opticalCON Assembly Build Specs
Cable Manufacture Specs: 2 Fiber Broadcast Tactical Cable Cutsheet
General: opticalCON Duo Cable Assembly Technical Info
General: OpticalCON Duo Handling Instructions
General: opticalCON Duo Technical Paper
General: Optional Deployable Reel Features & Specs
