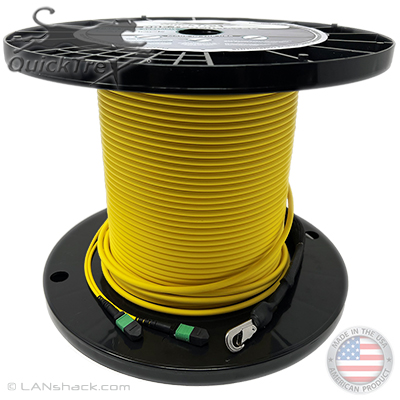

QuickTreX® MTP® Premium Trunk Assemblies are build custom for your critical network. We start with genuine MTP® connectors from US Conec® and precision terminate them to genuine Corning® fiber. Our MTP® termination process delivers uniform height and positioning for maximum physical contact for consistently low insertion loss and excellent return loss characteristics across the entire 12 fiber interface. These ruggedized assemblies transition to 3mm sequentially labeled legs. Our assemblies are proudly made in the USA by highly trained technicians. We have strict quality control measures in place so you can be certain your assembly will work perfect once installed.
Our indoor plenum rated jacket assemblies are rated for all indoor installations, including plenum rated spaces. A cable rated for plenum installation will have low-smoke characteristics as defined by the NFPA (National Fire Protection Agency).
Typical Applications Include:
- Headend Termination to a fiber "backbone"
- Termination of fiber rack systems
- Data Center & Other High Density Applications
- Multi-floor deployment where select fibers are used at each floor
- Intra-building "backbones"
Features:
- Genuine US Conec MTP Connectors
- Genuine Corning Glass
- Consistent Super Low Insertion and Return Loss
- Polished & Tested in Accordance with ECI Standards & Specs

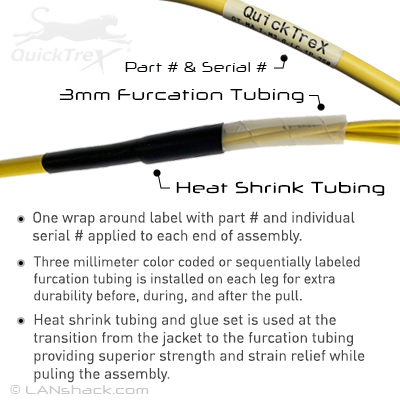

- 3mm Sequentially Labeled Furcation Tubing on Each Leg

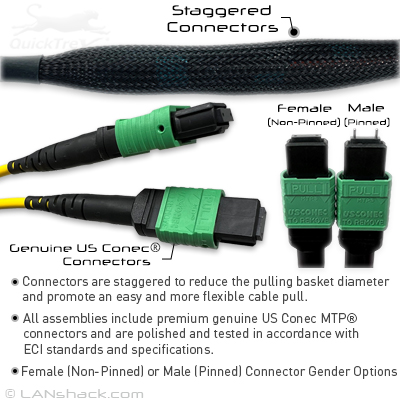

- Staggard Connectors for Easy Installation

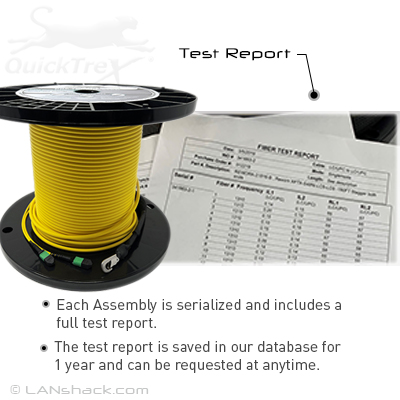

- Includes Full Test Report
- Optional Heavy Duty Swiveling Pulling Eye
- Made in the USA
- Strict Quality Control
- Fast Production Times
- RoHS compliant
- ISO 9001 Certified Manufacturing

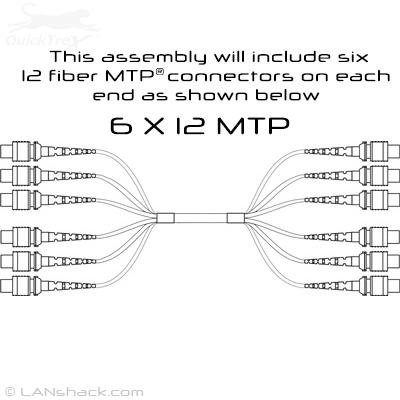

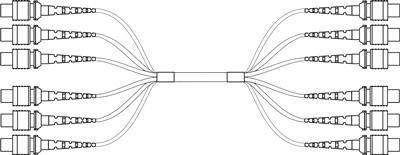

A 72 Fiber Trunk Cable will have six 12 Fiber MTP® Connectors on each end as illustrated below
NOTE: MTP® is a Registered Trademark of US Conec Ltd. Clearcurve® is a Registered Trademark of Corning Corp.
NOTE: Female to female configuration is suitable for cassette to cassette applications.
Specifications
Fiber Type
Singlemode Ultra 9/125 Corning® SMF-28®
Strand Count
6 x 12
Fiber Core Size
9/125 - 9µm
Wavelength
1310/1550nm
Link Length
10,000/5,000 meters (1/10Gb/s@1550nm)
Bandwidth
N/A
Max. Attenuation
0.5dB / 0.4km
Jacket Material
Flame Retardant PVC
Flame Rating
NFPA 262
Outer Jacket Color
Yellow
Buffer Tubes
Flame Retardant PVC
Strength Member
Aramid Yarn
Central Strength Member
Fiber Reinforced Plastic Rod
Coating on Central Strength Member
Flame Retardant PVC
Furcation Tubing Size
3mm
Furcation Tubing Color
EIA Color Coded or Sequentially Labeled

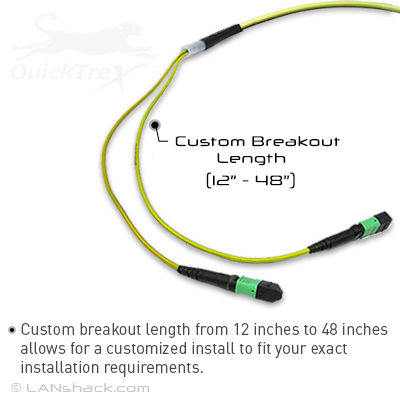

Breakout Length
Customizable
Connector Options
Male (With Pins) & Female (Without Pins)
Pulling Eye/s
Optional
Length Options
10 - 5000 ft
Storage Temps
-40 °C to +70 °C
Operating Temps
0 °C to +70 °C
Nominal Outer Diameter
10.5 mm
Weight
0.077 lbs. / ft
Min. Bend Radius / Installation
15.75 cm
Min. Bend Radius / Operation
10.5 cm
Average Insertion Loss
0.5dB
Resources
MTP Tutorial
Indoor SM Build Specifications
Indoor SM 12 - 96 Cable Cut Sheet
Indoor SM 144 Strand Cable Cut Sheet
Indoor SM 288 Strand (24 x 12) Cable Cut Sheet
Indoor SM 288 Strand (12 x 24) Cable Cut Sheet
Fiber Optic Definitions
Videos
When You Place An Order
Step 01
Place Your Order
Team processes & forwards to one of our USA production departments.
Step 02
Get Notifications
Receive emails on order status & estimated ship date.
Step 03
Production & Testing
Manufactured in-house with strict quality control.
Step 04
Track Your Order
Get tracking on your shipment until delivery.
Product Reviews (190)
5
5
4
3
2
1
Vytas
First time I've ordered from LANshack, will definitely use them in the future for pre-terminated custom fiber assemblies. Shipped quick and direct to customer.
customer
LANshack really was accommodating and very helpful with my fiber needs. They went to every extent to make sure our network was up and running in no time!
ProductSections
I have used LANshack for custom pre-terminated fiber assemblies for a couple of years now. The quality of the product is top notch. Setting up a new building and ordered this 1200' to connect 2 buildings together. Great termination quality. Zero issues installing and connecting. Connection lit from the start. Thank you very much.
Allen
Whenever we need to install a fiber link from one building to another, we order pre-terminated assemblies from LANshack ! Always done right, very reasonable turn around times. Shipping deals are always a plus.
customer
Great customer service. Products in stock.
Questions & Answers
What is an MTP or MPO trunk cable assembly?
An MTP/MPO trunk assembly is a fiber optic cable that has been terminated with MTP/MPO connecctors. It is designed for high-density, high-speed data transmission in data centers, enterprise networks, and telecom applications.
What is the difference between MPO and MTP?
MPO (Multi-fiber Push-on) is a generic term for multi-fiber connectors, while MTP (Multi-fiber Termination Push-on) is a specific, higher-performance version of MPO designed by US Conec. MTP connectors are designed to offer better mechanical and optical performance than standard MPO connectors.
What is a MTP or MPO connector?
It is a is a Multi-fiber Termination Push-on connector that consists of either 12 or 24 fibers used to connect multiple optical fibers in a compact form factor, ensuring efficient data transmission.
What lengths can I have my MTP trunk made to?
We offer lengths from 1 ft through 5000 ft.

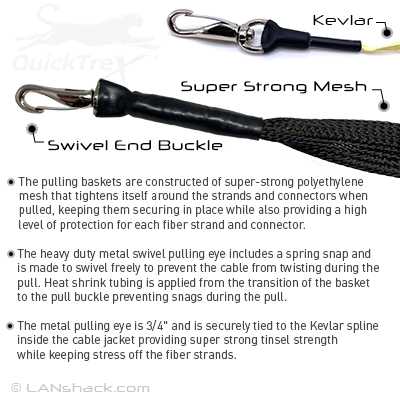

What is a pulling eye?
A pulling eye is an additional attachment that we offer optionally on our MTP trunk assemblies. They are designed to facilitate installation. It provides a sturdy attachment point for your pull string or rope, allowing you to pull the cable through conduits or tight spaces without damaging the connectors or fiber strands. The benefit of using a pulling eye is that it reduces the risk of damage during installation, especially in complex pathways or confined spaces. Our pulling eyes include a swivel buckle that twists during the pull preventing twisting of the cable which can cause damage.
