Our QuickTreX® IP68 Rated Corning Altos Outdoor (OSP) Loose Tube Singlemode Preconnectorized Fiber Optic Cable Assemblies with Weatherproof Senko Connectors are a perfect solution for your outdoor harsh environment installations where a sealed connection is a must. The Senko IP68 connectors used on these assemblies are designed to create a IP68 rated fiber optic cable installation. These types of cable installations are often used for fiber to the antenna, outdoor arenas, military applications, and more. We start with genuine Senko® connectors and precision terminate them to genuine Corning® outdoor (OSP) loose cable. We also offer all standard simplex fiber optic connectors for transitioning from a IP68 Rated side to a standard connectorized side often used in racks and enclosures. Our termination process delivers maximum physical contact for consistently low insertion loss and excellent return loss characteristics. Our assemblies are always proudly made in the USA and include a full test report. We also are ISO9001 certified so you can be assured we follow strict quality control measures during the manufacturing process of your assembly.
These assemblies are designed for use with our Outdoor Weatherproof IP68 Rated Fiber Optic Junction boxes. These boxes are populated with Senko IP68 Rated Adapters so you can easily plug your preconnectorized fiber optic assembly with Senko connectors directly into it. The use of a Senko IP68 rated connector and adapter creates a IP68 rated seal keeping out water, dust, and other contaminates that can affect the coupling of your fiber optic connectors.
This Outdoor (OSP) Loose Tube Cable is designed for underground installation in conduit, overhead lashed to a guide wire, or secured to a building or other permanent outdoor structure such as a radio tower. It's perfect for a variety of voice, data, video and image applications. It's also ideal for you next fiber-to-the-antenna install. The Loose tube construction and all-dielectric jacket are waterproofed, fungus resistant, UV resistant, and offers superior protection again harsh environmental elements.
Standard QuickTreX® Manufacturing Features:
- Fast Custom ISO 9001 Certified Manufacturing in the USA.
- Each assembly includes a wrap around-label on both ends of the assembly which will include the QuickTreX® part number and individual serial number.
- Each Assembly includes a full test report. During our testing process all fiber ends are visually inspected with a fiberscope of 400 power or better for surface defects including, cracking, pitting, and scratches, on the glass surface of the connector. All connector ends are then tested utilizing a professional grade Loss Test Set
- The test report is saved in our database for 1 year and can be requested at any time.
- Pulling Eyes (pulling baskets) if equipped are made from super strong polyethylene mesh and feature a free-spinning buckle to eliminate twisting of the cable during the pull. Heat shrink tubing is used at: 1. Where the basket meets with the turnbuckle (pull eye hook) 2. Where the basket ends and connects with the cable jacket to prevent snags and promote a smooth pull.

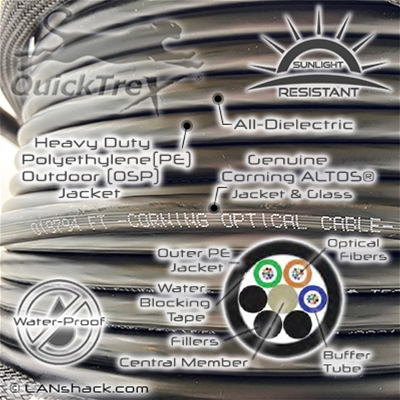

Cable Manufacture Features and Characteristics:
- Premium Corning® Optical Fibers
- Wavelength Singlemode 1310/1383/1550nm
- Link Length: 10,000 m (1Gb/s@1550nm), 5,000 m (10Gb/s@1550nm)
- Gel-free loose tubes fibers
- Heavy Duty Black Polyethylene (PE) Jacket
- Superior Protection from UV Radiation, Fungus, Abrasion, and other Environmental Factors
- Jacket print ensures product identification and fiber type
- Fully water-blocked core using water blocking tape
- All Dielectric Design
- Max Tensile Loads: Short Term: 2700N (600lbf) Long Term: 890 N (200 lbf)
- Temps: Storage -40ºF to +158ºF / Installation -22ºF to +158ºF / Operation -40ºF to +158ºC
- Outer Diameter: 0.41 in
- Min Bend Radius Installation: 6.2 in
- Min Bend Radius Long Term: 4.1 in
- RoHS Compliant
- Meets the Requirements of Telcordia GR-20, Issue 3 and ICEA S-87-640
For Urgent Orders: Call or email Sales at 888-568-1230 option 1 for a current estimated time. We’ll do our best to get your order expedited as quickly as possible.
NOTE: Due to the fact that this is a custom made to order cable assembly, it is non-cancelable and non-returnable. Please choose your product description and specifications carefully.
For pre and post purchase advice or tech support contact us by phone or email:
By Phone: 888-568-1230
By Email: [email protected]
Specifications
Fiber Type
Singlemode 9/125
Fiber Count
8
Fiber Core Size
9/125 - 9µm
Wavelength
1310 / 1383 / 1550 nm
Max. Attenuation
0.4/0.4/0.3 dB/km
Jacket Material
Polyethylene
Jacket Rating
Outdoor (OSP) Rated
Outer Jacket Color
Black
Central Member
Dielectric
Connector Options
LC, SC, ST, & FC
Pulling Eye/s
Optional - See Dropdown Menu
Length Options
10 - 5000 ft
Storage Temps
-40°C to +70°C
Installation Temps
-30°C to +70°C
Operating Temps
-40°C to +70°C
Nominal Outer Diameter
0.41 in
Nominal Cable Weight
0.0491 lbs/ft
Min. Bend Radius / Installation
4.1 in
Min. Bend Radius / Loading
6.2 in
Max. Tensile Loads (Short-Term)
2700 N
Max. Tensile Loads (Long-Term)
890 N
Videos
When You Place An Order
Step 01
Place Your Order
Our team processes your order within 24 business hours.
Step 02
Get Notifications
You receive emails about your order status.
Step 03
Track Your Order
Get tracking on your shipment until delivery.
Product Reviews (276)
5
5
4
3
2
1
Vytas
First time I've ordered from LANshack, will definitely use them in the future for pre-terminated custom fiber assemblies. Shipped quick and direct to customer.
customer
great options
Michael
LANshack was great to deal with! The special order fiber came quick and everything looked correct.
Matthew
Everything was perfect for my order.
customer
LANshack really was accommodating and very helpful with my fiber needs. They went to every extent to make sure our network was up and running in no time!
Questions & Answers
What makes these assemblies suitable for outdoor environments?
They are built with Corning Altos loose tube outdoor (OSP) cable and IP68-rated Senko connectors, which provide protection against dust, water, and harsh weather conditions.
How does the sealed connector benefit mission-critical applications?
The waterproof and dustproof seal prevents contamination, reducing downtime and ensuring continuous, reliable network performance in demanding deployments.
What makes IP68 Senko assemblies different from standard fiber cables?
These assemblies feature IP68-rated Senko connectors that provide complete waterproof and dustproof sealing, ensuring reliable fiber performance in harsh indoor or outdoor environments.
What types of environments are these assemblies ideal for?
They excel in outdoor arenas, rooftop antenna installations, broadcast events, military and tactical operations, and industrial environments exposed to moisture or dust.
Where can these assemblies be installed?
They are ideal for fiber-to-the-antenna (FTTA) applications, outdoor arenas, military deployments, industrial sites, and other mission-critical installations exposed to moisture, dust, or contaminants.
