QuickTreX® MTP® Premium Trunk Assemblies are built custom for your critical network. We start with genuine MTP® connectors from US Conec® and precision terminate them to genuine Corning SMF 28e+® Singlemode Laser optimized fiber. Our MTP® termination process delivers uniform height and positioning for maximum physical contact, consistently low insertion loss, and excellent return loss characteristics across the entire 24 fiber interface. These ruggedized assemblies transition to 3mm sequentially numerically labeled buffer tubes and simplex connectors (to your choosing). Our assemblies are proudly made in the USA by highly trained technicians. We have strict quality control measures in place so you can be certain your assembly will work perfect once installed.
Typical Outdoor (OSP) SST Drop Jacket Applications:
Our Corning® SST-Ribbon™ Gel-Free Drop Outdoor (OSP) Pre-Terminated Fiber Optic Cable Assemblies are rated for almost all outdoor applications. This cable is unique since it's self-supporting, meaning it can be installed aerially without a messenger, while also being durable enough for direct burial installations. If directly burying and rodents are a concern, we do recommend using our armored outdoor direct burial cable or using a conduit for extra protection. This cable is also perfect for installations inside conduit and pathways that are subjected to wide temperature variations or secured to a building or other permanent outdoor structure. It's rugged all dielectric design makes it a popular choice for a variety of outdoor installations. Our outdoor (OSP) pre-terminated fiber optic assemblies are perfect for headend termination to a fiber backbone and intra-building backbones. If installing in conduit we recommend using at least a 2 1/2" diameter conduit to accommodate for the assembly breakout.
Typical Applications Include:
- Outdoor Aerial
- Duct and Direct-buried
- Indoor when installed according to National Electrical Code® (NEC®) Article 770
QuickTreX® Manufacturing Features:
- Genuine US Conec MTP Connectors (APC Polish Standard for Singlemode)
- Genuine Corning Glass
- Consistent Super Low Insertion and Return Loss
- Polished & Tested in Accordance with ECI Standards & Specs
- 3mm Labeled Furcation Tubing on Breakout Strands
- Staggard Connectors for Easy Installation
- All Breakouts & Strands are Sequentially Labeled
- Includes Full Test Report
- Optional Heavy Duty Swiveling Pulling Eye
- Made in the USA
- Strict Quality Control
- Fast Production Times
- RoHS compliant
- ISO 9001 Certified Manufacturing
- Standards: RoHS Compliant, ANSI/ICEA S-87-640, Telcordia GR-20, RDUP PE-90
- Common Installations: Outdoor aerial, duct and direct-buried; indoor when installed according to National Electrical Code® (NEC®) Article 770

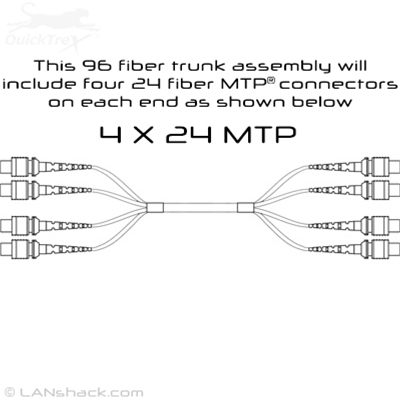

This 96 fiber cable assembly will have four 24 Fiber MTP® Connector on each end as illustrated below:
NOTE: MTP® is a Registered Trademark of US Conec Ltd. Clearcurve® is a Registered Trademark of Corning Corp.
Specifications
Fiber Type
Singlemode 9/125 Corning® SST-Ribbon™
Strand Count
4 x 24
Fiber Core Size
9/125 - 9µm
Wavelength
1310/1383/1550nm
Link Length
10,000/5,000 meters (1/10Gb/s@1550nm)
Bandwidth
N/A
Max. Attenuation
0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Jacket Material
Polyethylene (PE)
Armoring Material
None
Jacket Rating
OSP Outdoor
Flame Rating
N/A
Outer Jacket Color
Black
Strength Member
Dielectric
Construction
Ribbon
Furcation Tubing Size
3mm
Furcation Tubing Color
EIA Color Coded or Sequentially Labeled
Breakout Length
Customizable
Connector Options
Male (With Pins) & Female (Without Pins)
Pulling Eye/s
Optional
Length Options
10 - 5000 ft
Average Insertion Loss
0.75dB
Storage Temps
-40 °C to +70 °C
Operating Temps
-40 °C to +70 °C
Nominal Outer Diameter
12.2 mm
Weight
0.075 lbs. / ft
Min. Bend Radius / Installation
18.3 cm
Min. Bend Radius / Operation
12.2 cm
Videos
When You Place An Order
Step 01
Place Your Order
Team processes & forwards to one of our USA production departments.
Step 02
Get Notifications
Receive emails on order status & estimated ship date.
Step 03
Production & Testing
Manufactured in-house with strict quality control.
Step 04
Track Your Order
Get tracking on your shipment until delivery.
Product Reviews (190)
5
5
4
3
2
1
Vytas
First time I've ordered from LANshack, will definitely use them in the future for pre-terminated custom fiber assemblies. Shipped quick and direct to customer.
customer
LANshack really was accommodating and very helpful with my fiber needs. They went to every extent to make sure our network was up and running in no time!
ProductSections
I have used LANshack for custom pre-terminated fiber assemblies for a couple of years now. The quality of the product is top notch. Setting up a new building and ordered this 1200' to connect 2 buildings together. Great termination quality. Zero issues installing and connecting. Connection lit from the start. Thank you very much.
Allen
Whenever we need to install a fiber link from one building to another, we order pre-terminated assemblies from LANshack ! Always done right, very reasonable turn around times. Shipping deals are always a plus.
customer
Great customer service. Products in stock.
Questions & Answers
What is an MTP or MPO trunk cable assembly?
An MTP/MPO trunk assembly is a fiber optic cable that has been terminated with MTP/MPO connecctors. It is designed for high-density, high-speed data transmission in data centers, enterprise networks, and telecom applications.
What is the difference between MPO and MTP?
MPO (Multi-fiber Push-on) is a generic term for multi-fiber connectors, while MTP (Multi-fiber Termination Push-on) is a specific, higher-performance version of MPO designed by US Conec. MTP connectors are designed to offer better mechanical and optical performance than standard MPO connectors.
What is a MTP or MPO connector?
It is a is a Multi-fiber Termination Push-on connector that consists of either 12 or 24 fibers used to connect multiple optical fibers in a compact form factor, ensuring efficient data transmission.
What lengths can I have my MTP trunk made to?
We offer lengths from 1 ft through 5000 ft.
What is a pulling eye?
A pulling eye is an additional attachment that we offer optionally on our MTP trunk assemblies. They are designed to facilitate installation. It provides a sturdy attachment point for your pull string or rope, allowing you to pull the cable through conduits or tight spaces without damaging the connectors or fiber strands. The benefit of using a pulling eye is that it reduces the risk of damage during installation, especially in complex pathways or confined spaces. Our pulling eyes include a swivel buckle that twists during the pull preventing twisting of the cable which can cause damage.
