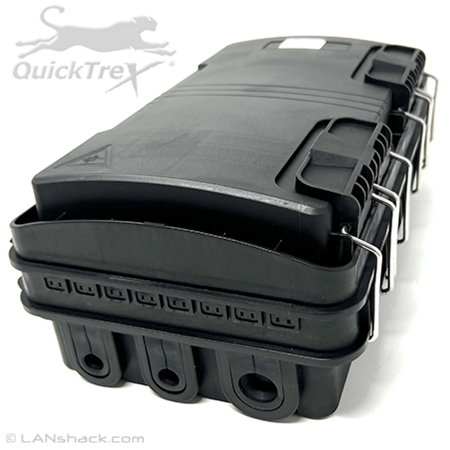

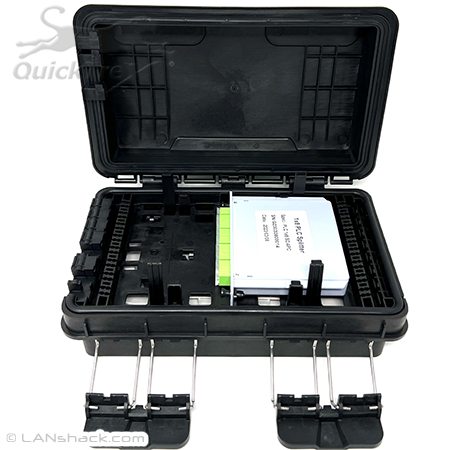

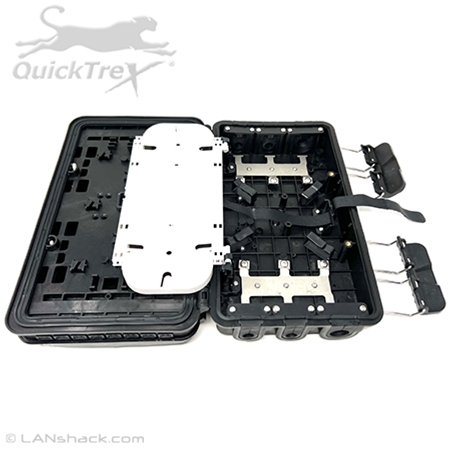

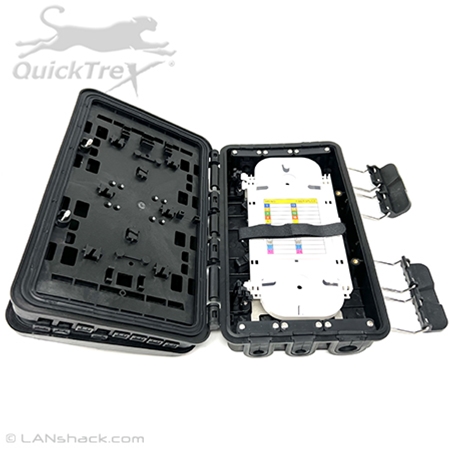

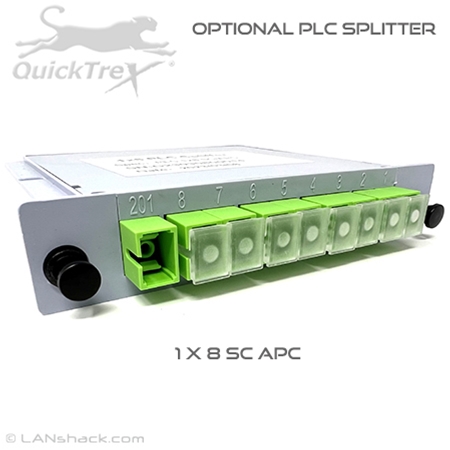

Our QuickTreX® 18 Adapter (1-36) Fiber Outdoor IP68 Rated Aerial Horizontal / Wall Mountable Fiber Optic Splitter / Splice / Distribution Enclosure with Splice Sleeves, Splice Tray, and Mounting Hardware is IP68 rated and perfect for interconnectivity and termination of optical fibers in outdoor overhead distribution locations and for wall mount locations. It's made of high strength PP plastics to provide heavy duty UV and waterproof protection of your fiber optic connectors. It's also corrosion and aging resistant. Our 1-36 fiber optic aerial/wall mount PLC splitter / splice enclosure includes one 12/24 fiber hinged splice tray and is designed to house an optional PLC splitter cassette. It also includes an 18 adapter capacity panel for installations that require feedthrough couplings of fiber optic connectors. This fiber enclosure also offers a high quality sealing gasket to help seal out moisture and dust. This enclosure has a clamp stile door and is designed to be aerially on a guy wire and can also be wall mounted. It includes aerial mounting brackets,16 splice sleeves, electrical tape, hose/cable clamps, and zip ties.
Includes:
- Aerial Hanging Brackets

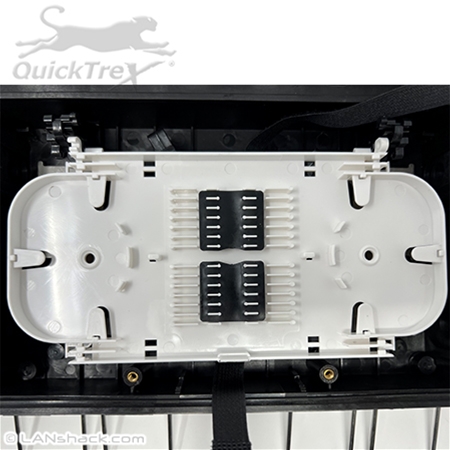

- (1) 12/24 Fiber Splice Tray

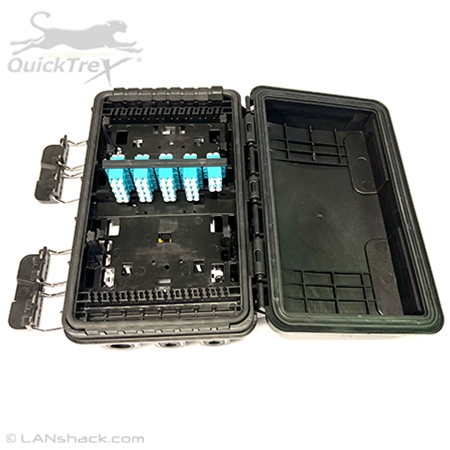

- (1) 16 Adapter Capacity Panel
- 16 Splice Sleeves
- 6 Hose/Cable Clamps
- Zip Ties
- PVC Electrical Tape
Specifications
Mounting Type
Aerial Horizontal / Wall Mount

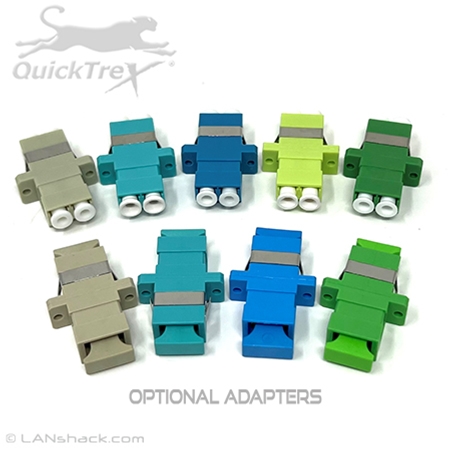

Adapter Options
See Dropdown Menu
Panel
(1) 16 Adapter Capacity
Dimensions
7.08"H x 11.42"W x 4.33"D
Fiber Capacity
36 Fibers
Splice Tray
(1) 12/24 Fiber
Material
High Strength PP Plastic
IP Rating
IP68
Color
Black
Cable Entry / Exit
(2) 8-20mm and (8) 5-14mm
Operating Temps
40°C to +75°C
Relative Humidity
≤ 85%
Atmospheric Pressure
70Kpa to 106Kpa
Standard
YC/T814.1-2004
Impact
1m/1kg Steel Ball / Three Times
Bending
150N / ±45° / 10 cycles
Torsion
50N.m / +90° / 10 cycles
Insulation Resistance
2x10^4MΩ/500V
Compression Strength
15kv/1min/10mA
Manufacturing
ISO9001
Hardware
Included
Videos
When You Place An Order
Step 01
Place Your Order
Our team processes your order within 24 business hours.
Step 02
Get Notifications
You receive emails about your order status.
Step 03
Track Your Order
Get tracking on your shipment until delivery.
Product Reviews (116)
5
5
4
3
2
1
Vytas
First time I've ordered from LANshack, will definitely use them in the future for pre-terminated custom fiber assemblies. Shipped quick and direct to customer.
customer
great options
customer
LANshack really was accommodating and very helpful with my fiber needs. They went to every extent to make sure our network was up and running in no time!
Allen
Whenever we need to install a fiber link from one building to another, we order pre-terminated assemblies from LANshack ! Always done right, very reasonable turn around times. Shipping deals are always a plus.
customer
Great customer service. Products in stock.
Questions & Answers
What does UHD stand for?
UHD stands for "Ultra High Density" and provides the most compact connector layout or footprint on the adapter panel. UHD enclosures or panels can only accept UHD adpater panels or cassettes.
What does SHD chassis mean?
SHD stands for "Super High Density" and provides a more compact connector layout or footprint on the adapter panel. SHD chassis enclosures can only accept SHD adapter panels or MTP/MPO cassettes.
How many fiber strands can fit into a fiber optic enclosure?
The amount of fiber strands that you can fit into an enclosure will depend on how many panels or adapters you can fit and what type of connectors you choose. For example, if you choose a 1 panel enclosure and use a 12LC adapter panel, you can house or couple 12 fibers in that enclosure. If you use 12 MTP/MPO adapter panel, you can house or couple 144 or 288 strands depending on whether the MTP or MPO connector being connected is a 12 or 24 fiber connector.
What does LGX stand for?
LGX stands for Lucent Connector Group and is often called Lucent Global X. It was originally Lucent Technologies standard for fiber optic adapter plates and enclosures but over time it became industry standard.
What are the different types of chassis in fiber optic enclsoures?
The three main chassis are LGX, SHD, and UHD. LGX is the most common and standardized chassis type.
